Brahma OR E6G *SR10 Series Gas Solenoid Valve GMO Safety Solenoid Control Gas The Electromagnetic Valves For Burner Parts
隐藏域元素占位
-

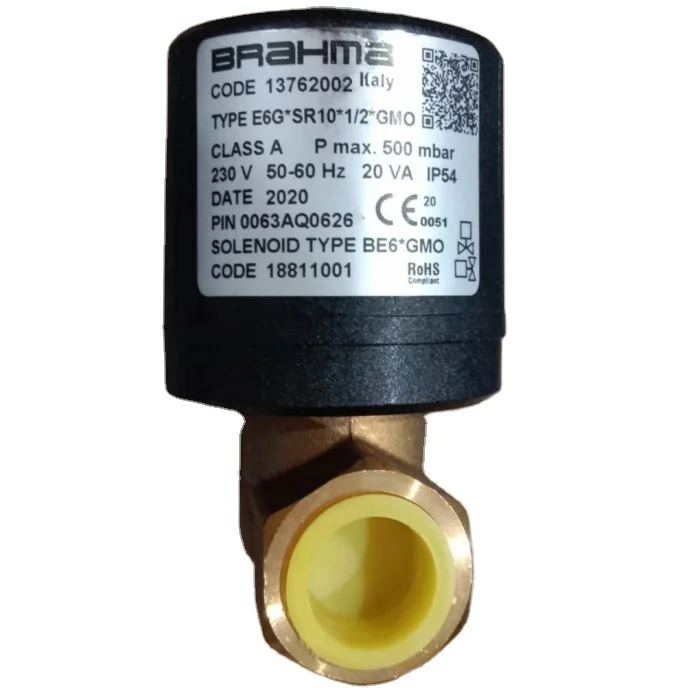

Brahma ORE6G *SR10 SeriesGas Solenoid Valve GMO Safety Solenoid Control Gas The Electromagnetic Valves For Burner Parts
GENERAL DESCRIPTION

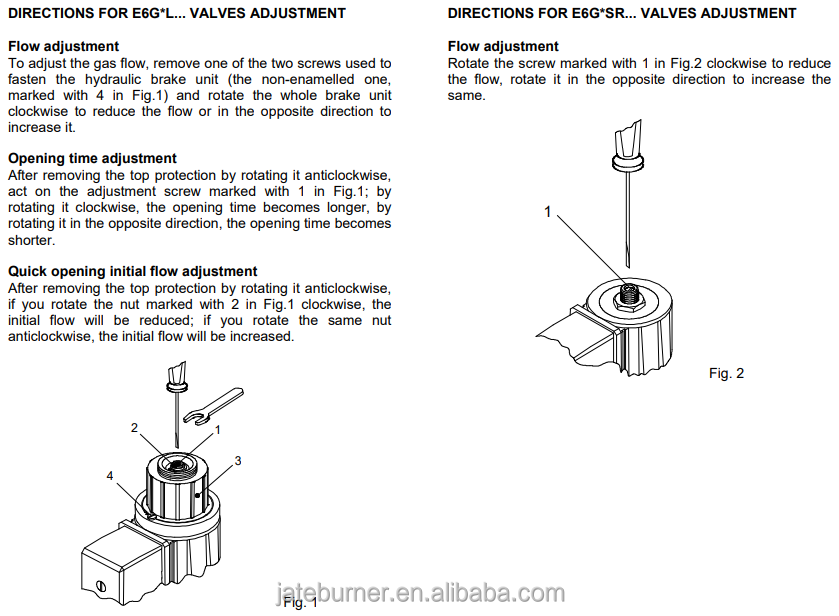

This series of solenoid valves is of normally closed type, suitable for civil and industrial applications,supplied with alternate or direct current. These valves are divided into two groups: with 8 mm or 10 mm orifice. The valves marked with “S” or “L” after their type reference have a coil operating in direct current, which has enabled to make their actions as noiseless as possible. It is possible to have valves provided with upstream or downstream pressure test point (excluding the ones with G1/4” connection) and, for 10 mm orifice versions only, valves equipped with hydraulic brake unit, enabling slow opening; in this case it is also possible to have an adjustable quick opening initial flow. The valves of this series, conforming to EN161,have a CE type Certificate (CE Reg. N° 63AQ0626) in accordance to the European Directives 90/396 and 93/68.
INSTALLATION
- Respect the applicable national and European standards (e.g. EN60335-1) regarding electrical safety.
- Assemble the valve to the installation so that the arrow on the valve body has the same direction as the fuel flow.
- During the assembly of the valve to the installation piping, avoid twisting on the sheath and always use an hexagonal wrench to be fitted to the valve body.
- Make sure that no foreign matters have entered the valve body.
- Make sure that the max. fuel input pressure never exceeds the value appearing on the label.
